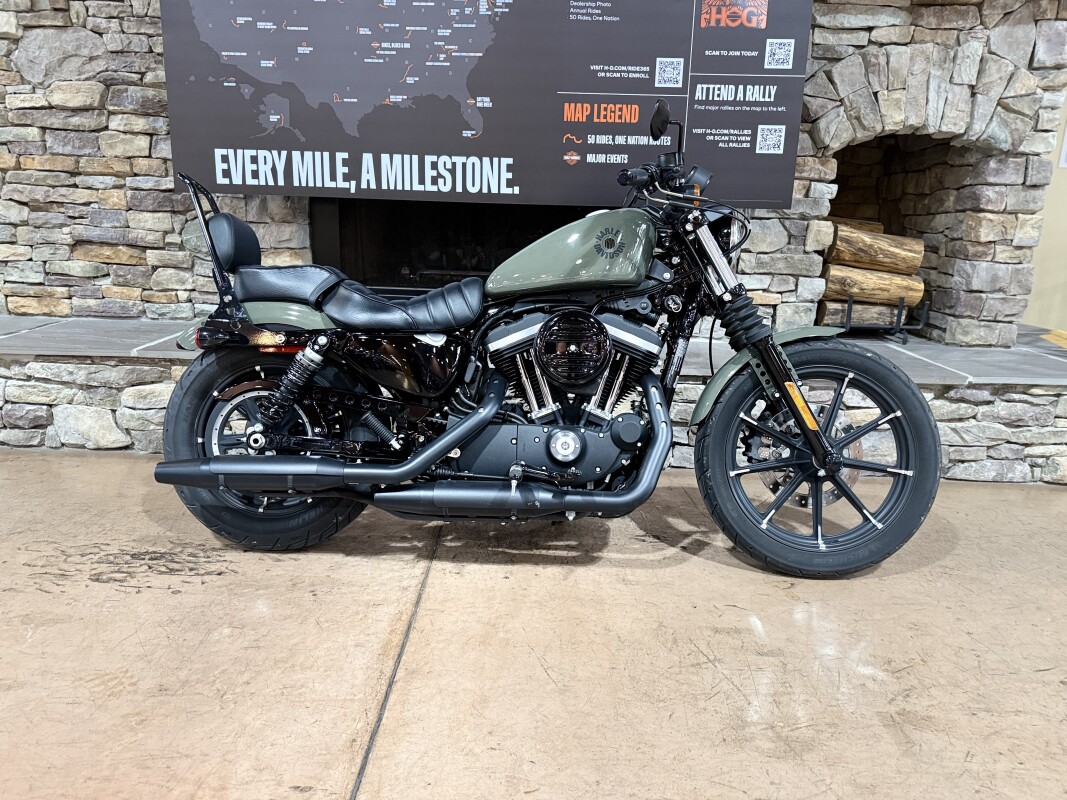

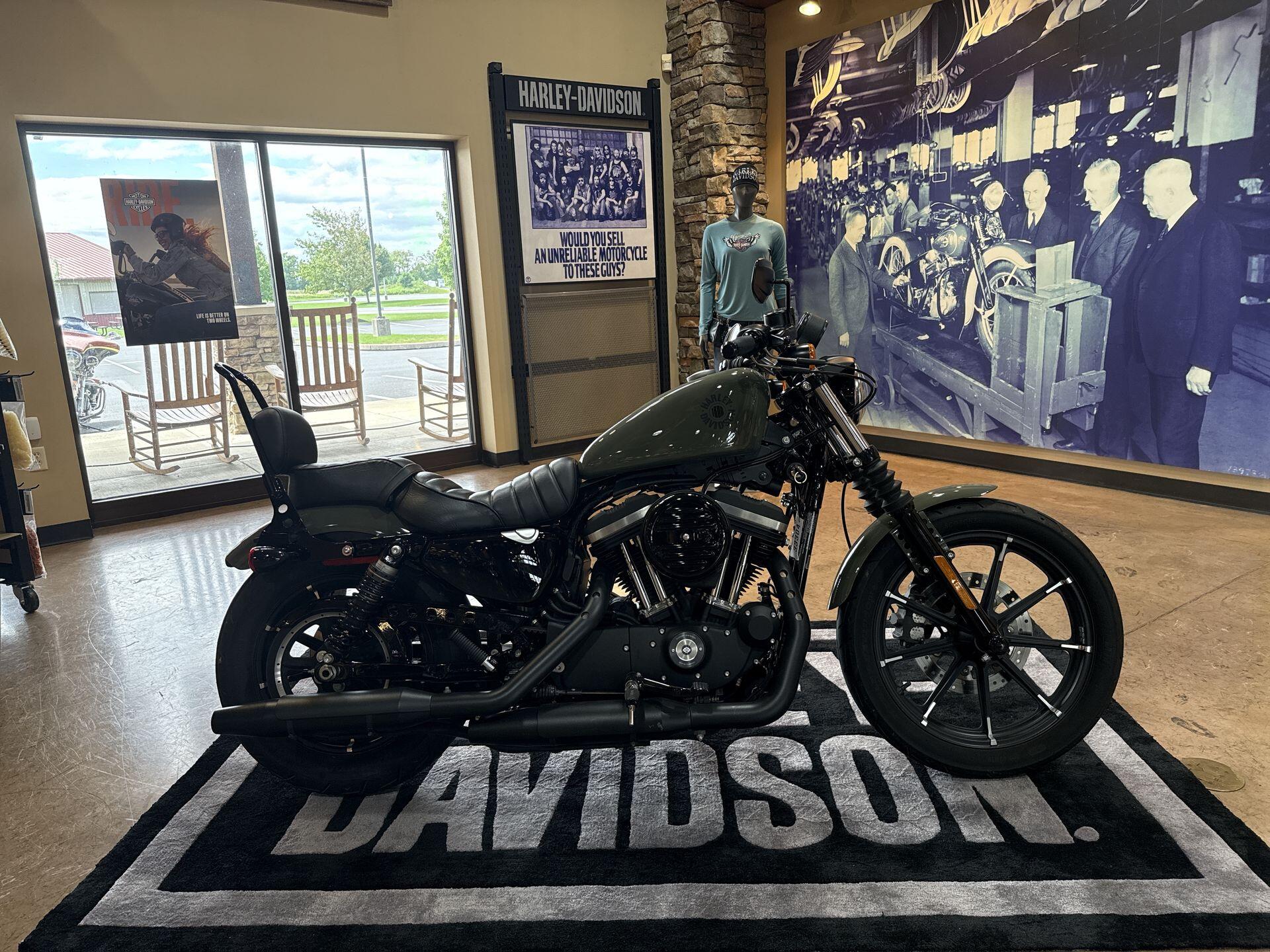

The 2021 Harley-Davidson Iron 883 in Deadwood Green delivers a raw, blacked-out attitude with old-school Harley soul and modern street style. Powered by the legendary 883cc Evolution V-Twin, this bike is built for riders who want stripped-down performance, aggressive looks, and unforgettable rumble every time they hit the throttle

Specifications

Dimensions

add remove
- Length:

  86.0 in
- Seat height, unladen:

  29.9 in
- Dry Weight:

  545 lbs
- Ground clearance:

  5.5 in
- Rake (steering head):

  30
- Trail:

  4.6 in
- Wheelbase:

  59.6 in
- Tires, front specifications:

  100/90B19 57H
- Tires, rear specifications:

  150/80B16 77H
- Fuel Capacity:

  3.3 gal
- Oil capacity:

  2.8 qt.
- Weight, as shipped:

  545 lbs
- Weight, in running order:

  564 lb
- Luggage capacity – volume:

  N/A
Engine

add remove
- Engine:

  Air-cooled, Evolution®
- Bore:

  3.0 in
- Stroke:

  3.8 in
- Displacement:

  53.88 in³
- Compression ratio:

  09:01
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  Black exhaust headers and black mufflers
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  50.2 ft-lb
- Engine torque (RPM):

  4750
- Lean angle, right (deg.):

  27
- Lean angle, left (deg.):

  28
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  0.00 mpg
- CO₂ emissions testing method:

  EU 134/2014
- CO₂ emissions :

  111 g/km CO2
Powertrain

add remove
- Primary drive:

  Chain, 34/57 ratio
- Gear ratios (overall) 1st:

  10.41
- Gear ratios (overall) 2nd:

  7.436
- Gear ratios (overall) 3rd:

  5.531
- Gear ratios (overall) 4th:

  4.584
- Gear ratios (overall) 5th:

  3.931
- Gear Ratios (overall) 6th:

  N/A
Chassis

add remove
- Wheels, optional style type:

  N/A
- Wheels, front type:

  Black 9 Spoke with Machined Highlights
- Wheels, rear type:

  Black 9 Spoke with Machined Highlights
- Brakes, caliper type:

  Dual-piston front, Dual-piston rear
Electric

add remove
- Lights (as per country regulation), indicator:

  High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (if equipped), ABS (if equipped)
- Gauges:

  Handlebar-mounted electronic speedometer with odometer, time-of-day clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights
