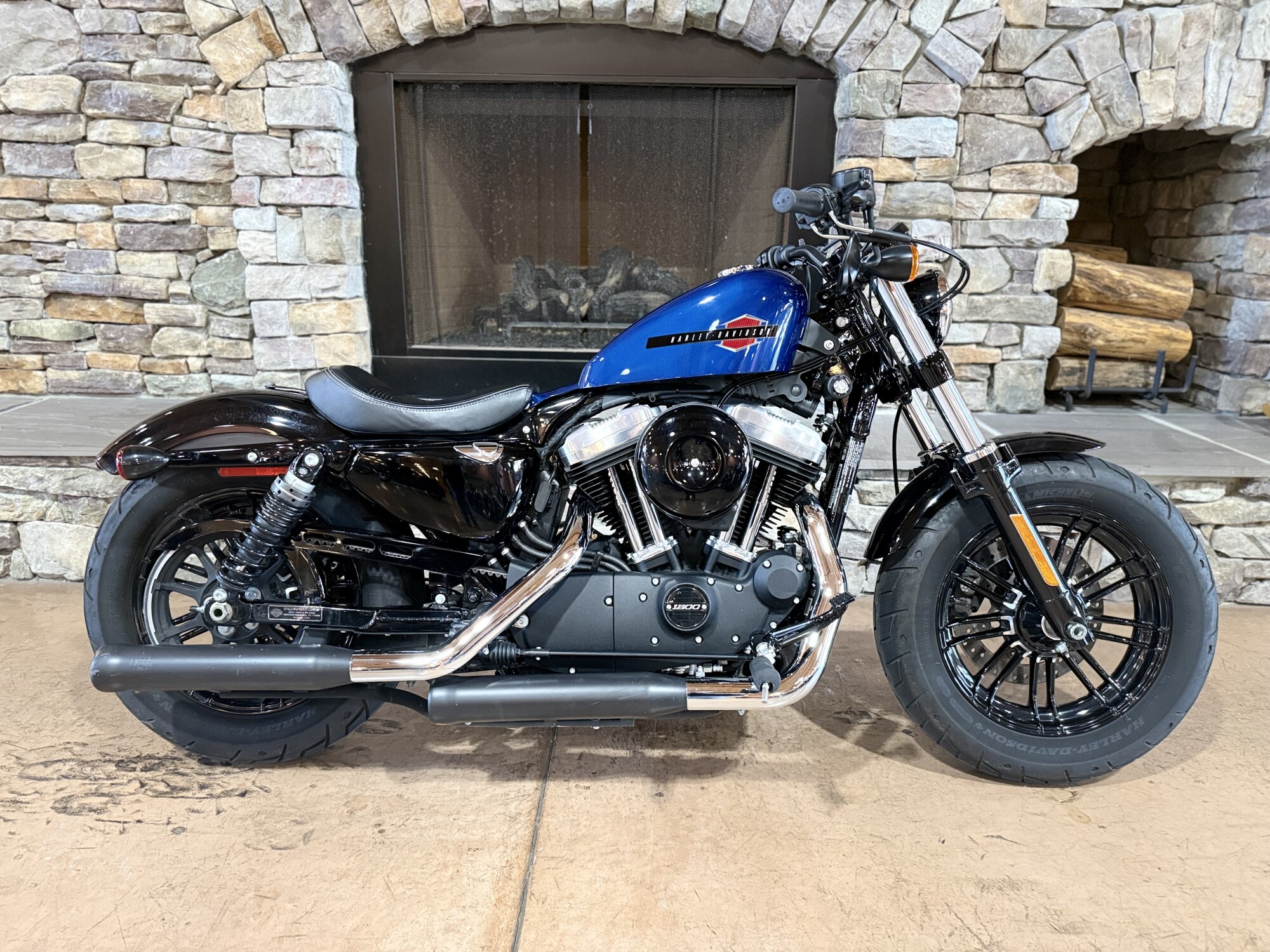

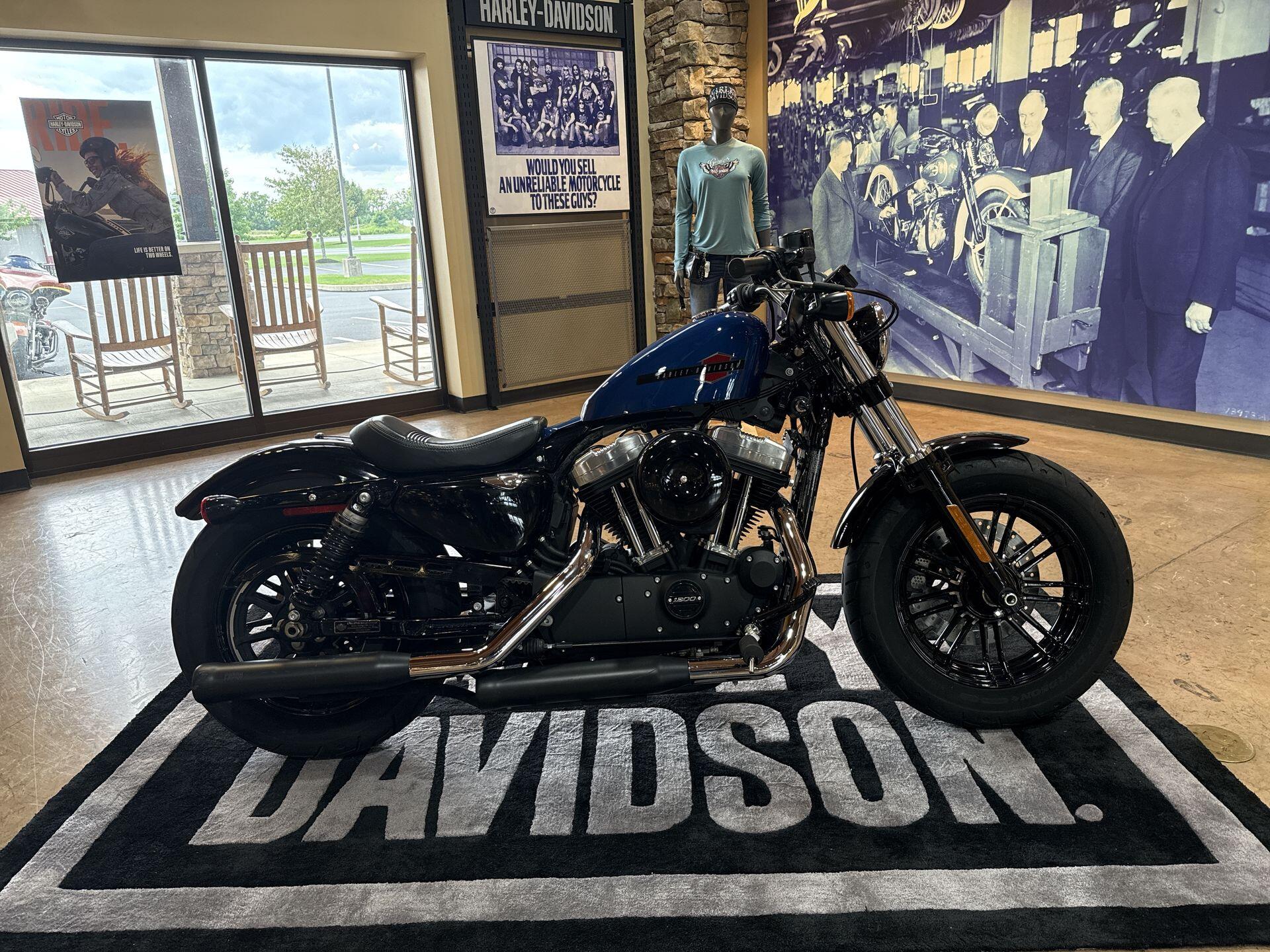

‹ Home › Inventory › 2021 XL1200X - SPORTSTE FORTY-EIGHT

The 2021 XL1200X delivers old-school Harley-Davidson style with modern edge, featuring the legendary 1200cc engine and aggressive stance riders love. Lightweight, responsive, and full of attitude—this one is built to stand out and have fun doing it.

Specifications

Dimensions

add remove
- Length:

  85.2 in
- Seat height, unladen:

  28.0 in
- Dry Weight:

  545 lbs
- Ground clearance:

  4.3 in
- Rake (steering head):

  30.2
- Trail:

  5.3 in
- Wheelbase:

  58.9 in
- Tires, front specifications:

  130/90B16 73H
- Tires, rear specifications:

  150/80B16 77H
- Fuel Capacity:

  2.1 gal
- Oil capacity:

  2.8 qt.
- Weight, as shipped:

  545 lbs
- Weight, in running order:

  556 lb
- Luggage capacity – volume:

  N/A
Engine

add remove
- Engine:

  Air-cooled, Evolution®
- Bore:

  3.5 in
- Stroke:

  3.8 in
- Displacement:

  1,201.98 in³
- Compression ratio:

  10:01
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  Black, staggered, shorty exhaust with dual mufflers
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  70.8 ft-lb
- Engine torque (RPM):

  3500
- Horsepower:

  66 HP / x49 Kw @ 6000 rpm
- Lean angle, right (deg.):

  27
- Lean angle, left (deg.):

  27
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  0.00 mpg
- CO₂ emissions testing method:

  EU 134/2014
- CO₂ emissions :

  120 g/km CO2
Powertrain

add remove
- Primary drive:

  Chain, 38/57 ratio
- Gear ratios (overall) 1st:

  9.315
- Gear ratios (overall) 2nd:

  6.653
- Gear ratios (overall) 3rd:

  4.948
- Gear ratios (overall) 4th:

  4.102
- Gear ratios (overall) 5th:

  3.517
- Gear Ratios (overall) 6th:

  N/A
Chassis

add remove
- Wheels, optional style type:

  N/A
- Wheels, front type:

  Black, Split 9-Spoke Cast Aluminum w/ Machined Highlights
- Wheels, rear type:

  Black, Split 9-Spoke Cast Aluminum w/ Machined Highlights
- Brakes, caliper type:

  Dual-piston front, Dual-piston rear
Electric

add remove
- Lights (as per country regulation), indicator:

  High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (if equipped), ABS (if equipped)
- Gauges:

  Handlebar-mounted electronic speedometer with odometer, time-of-day clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights
