‹ Home › Inventory › 2024 FLHXSE - CVO Street Glide

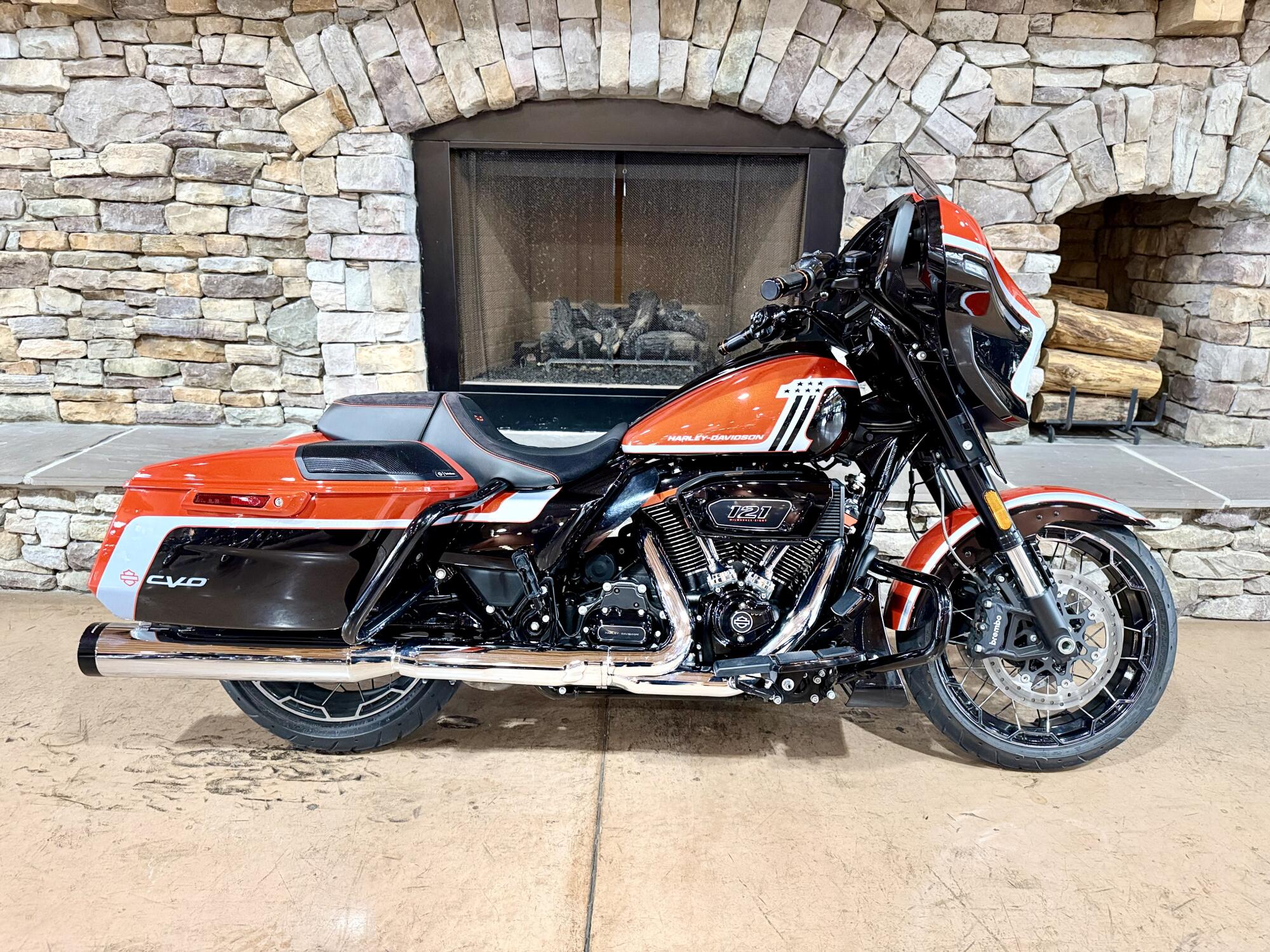

This 2024 CVO Street Glide in stunning Legendary Orange isn't just a motorcycle—it's a statement. Powered by the Milwaukee-Eight® VVT 121 engine and loaded with premium CVO styling, cutting-edge technology, and unmatched comfort, this bike delivers the ultimate touring experience.

With its aggressive stance, exclusive finishes, and head-turning Legendary Orange paint, this CVO demands attention everywhere it goes. If you've been waiting for the perfect combination of luxury, power, and exclusivity, this is it.

Don't just ride—arrive. Stop in today before this Legendary Orange masterpiece finds a new garage.

Specifications

Dimensions

add remove
- Length:

  94.9 in
- Overall width:

  38.4 in
- Overall height:

  53.1 in
- Seat height, unladen:

  28.0 in
- Ground clearance:

  5.5 in
- Rake (steering head):

  26
- Trail:

  6.7 in
- Wheelbase:

  64.0 in
- Tires, front specifications:

  130/60B19 M/C 61H
- Tires, rear specifications:

  180/55B18 M/C 80H
- Fuel Capacity:

  6.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  800 lbs
- Luggage capacity – volume:

  2.2 cu ft (0.062 m3)
- Tire, type:

  Dunlop® Harley-Davidson Series, bias blackwall front and rear
- Fork angle:

  30
- Reserve fuel capacity, fuel injection:

  1.0 gal
Engine

add remove
- Engine:

  Milwaukee-Eight® VVT 121
- Bore:

  4.1 in
- Stroke:

  4.6 in
- Displacement:

  120.64 in³
- Compression ratio:

  11.4:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Air cleaner:

  Synthetic Felt, Washable
- Exhaust:

  2-1-2 dual exhaust
- Lubrication system:

  Pressurized, dry-sump
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  139.4 ft-lb
- Engine torque (RPM):

  3,000
- Horsepower:

  115 HP / 86 kW @ 4500 rpm
- Lean angle, right (deg.):

  32
- Lean angle, left (deg.):

  32
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  45 mpg (5.1 l/100 km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.593
- Gear ratios (overall) 2nd:

  6.65
- Gear ratios (overall) 3rd:

  4.938
- Gear ratios (overall) 4th:

  4
- Gear ratios (overall) 5th:

  3.407
- Gear Ratios (overall) 6th:

  2.875
- Final drive:

  Belt, 32/68 ratio
- Clutch:

  Mechanically actuated 10 plate, wet Assist & Slip
- Transmission:

  6-Speed Cruise Drive®
Chassis

add remove
- Front fork:

  47 mm Inverted 1x1 Front Forks
- Rear shocks:

  Dual adjustable emulsions suspension with remote preload adjustment on the left shock, and threaded preload on the right shock
- Wheels, front type:

  Combo Cast Laced
- Wheels, rear type:

  Combo Cast Laced
- Brakes, type:

  Dual floating rotors (front), fixed rotor (rear)
- Brakes, caliper type:

  32 mm, 4-piston fixed dual radially mounted front, and single axially mounted rear
- Frame:

  Mild steel; tubular frame, two-piece stamped and welded backbone; cast and forged junctions; twin down tubes; bolt-on rear frame with forged fender supports; MIG welded
- Swingarm:

  Mild steel, two piece drawn and welded section; forged junctions; MIG welded
Electric

add remove
- Lights (as per country regulation), Headlamp:

  LED
- Lights (as per country regulation), Tail/Stop:

  LED
- Lights, front signal lights:

  LED
- Lights, rear turn signals:

  LED
- Gauges:

  Digital gauges integrated within the display
- Battery:

  Sealed, maintenance-free, 12V, 28-amp/hour, 405 cca (per Battery Council International Rating)
- Charging:

  Three-phase, 58-amp system (754W max power @ 13V)
- Starting:

  1.6 kW electric with solenoid shift starter motor engagement
- Electric power outlet:

  15 Watt USB-C electric power accessory port in media storage box.
- GPS System:

  Yes, imbedded navigation system with real-time traffic and weather via Wi-Fi Hotspot
Infotainment

add remove
- Screen size:

  12.3 in (312 mm)
- Infotainment system:

  Skyline™ OS
- Type:

  Full Color TFT
- Watts per channel:

  125
- Speakers:

  4
- Speaker size:

  Two 6.5in fairing speakers, and two 5x7in saddlebag speakers
- Headset specifications (if equipped):

  Harley-Davidson Packtalk Edge wireless Bluetooth® headset
- AM:

  Standard
- FM:

  Standard
- Weather Band (WB):

  Supported
- Languages:

  Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice recognition: phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Phone dependent
- Text-to-Speech (TTS) languages:

  Phone dependent
- Rider / passenger intercom:

  Standard (passenger headset sold separately), VOX is available for HD headsets
- Vehicle information screen:

  Standard
- USB:

  USB-C/MTP/iPod/iPhone, any device with proper adapters to the electric power outlet located in the inner fairing storage.
- Bluetooth:

  Phone/Media Player, Headset
